SKU: OLSC-WST-01
Categories: Lab Furniture, Lab Bench
Enter your pin code to check if the product is available

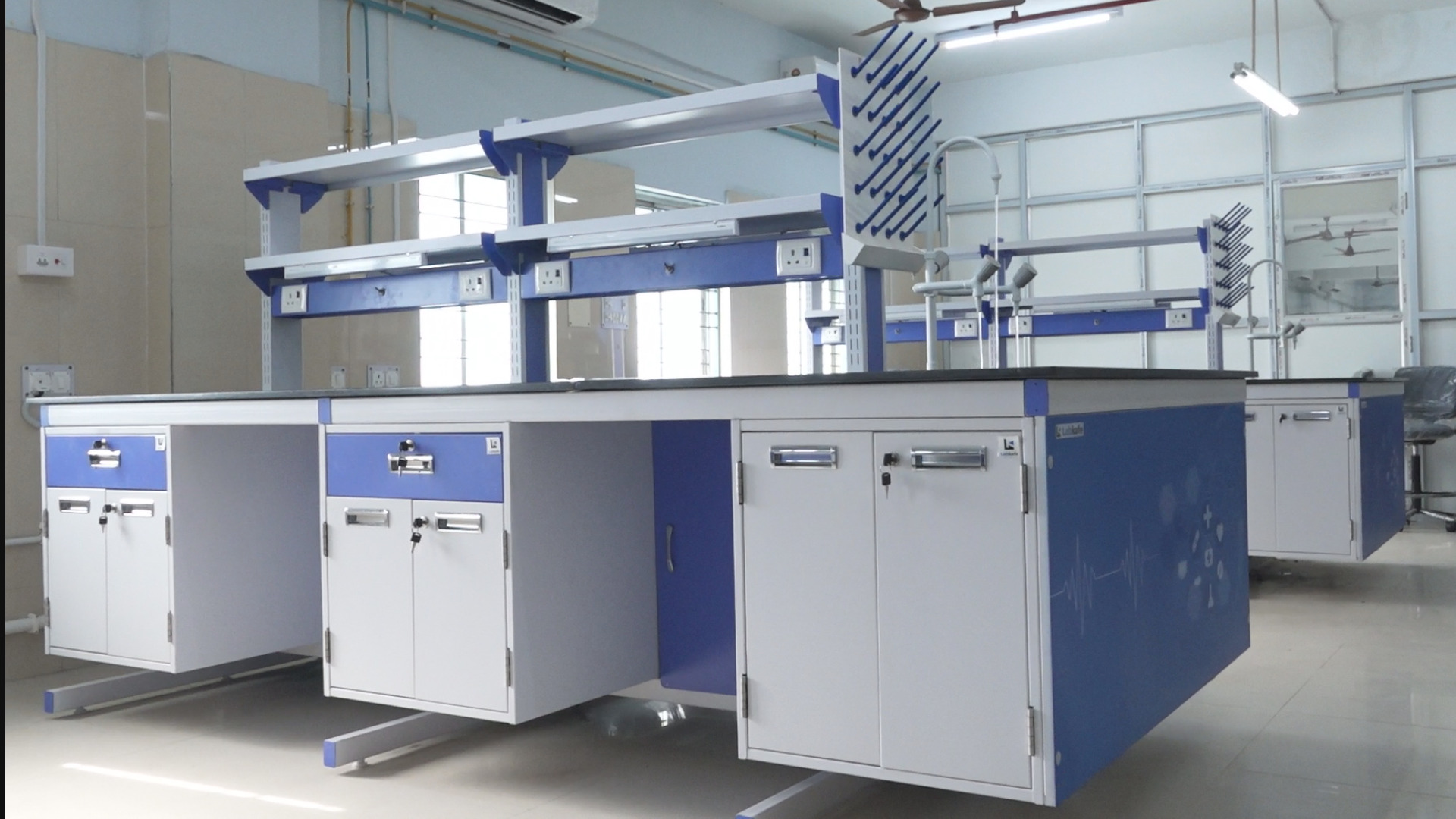

| Type of Lab furniture | Side bench with rack and table top |
| Type of Frame for installation of bench | C type frame |
| Type of laboratories furniture and allied accessories | Modular |
| Cabinet design | Facilitating future equipment retrofits and full reconfigurations without requiring any major modification to the structure |
| Ground clearance ± 5 mm | 25 mm |
| Table back bottom skirting | N.A |
| Rear panel | N.A |
| Provision of Electrical raceway | Yes |
| Provision of Electrical points | Yes |
| Provision of modular type reagent rack | N.A |
| Provision of Electrical service panels | Slideable type |
| Provision of Gas service panels | N.A |
| Provision of Verticals | N.A |
| Verticals (single) | N.A |
| Verticals (double) | N.A |
| Mini Vertical Service channel connector | N.A |
| Provision of blower (to remove airborne contaminants) | No |
| Provision of ducting (for purpose of ventilation) | No |
| Scope of supply (offer price to include all cost components) | Furnishing/Installation all the laboratories furnitures and allied accessories along with the supporting structures |
| Transportation /freight charges | Offer prices are on free delivery at consignee site |
| Approval of laboratory layout plan | After award of contract, seller shall have to get submitted layout plan within 10 days to get approved from buyer. Buyer shall convey his approval or otherwise within 10 days after submission of layout plan. If there is delay in approval of plan from buyer side, the D.P shall be regularized for the period of delay in plan approval |
| Type of Frame | C type Frame - One piece Deep Drawn moulded in EDD CRCA Ç’ frame work with 50 mm width x 50 mm height and epoxy powder coated with self adjusting levellers (No tubular construction) – 2 numbers per table |
| Each moulded C frame leg have a load carrying capacity | 600 Kgs. |
| Material of Frame | Galvanized (Zinc coated) GI steel sheet double skin pass |
| Thickness of Frame | 1.2 mm |
| Cabinets body (casing) material | GI steel sheets |
| Thickness of Cabinet frame cover panel | 1.2 mm |
| Base Cabinets UDL (uniformly distributed load) | 300 Kgs |
| Drawers support brackets shelves slides thickness | 1.1 mm |
| Side cover panels material | 1.1 mm |
| Side cover panels thickness | 1.1 mm |
| Handles thickness | 1.1 mm |
| Sandwich type metal shutters (within filled sound deadening material) made up of | GI steel sheets epoxy powder coated |
| Sandwich type metal shutters thickness | 1.1 mm |
| Shelves and Drawers load carrying capacity | 40 Kgs |
| Overall load carrying capacity of Cabinet | 80 Kg (40 Kgs. On each shelf and 40 Kgs. On bottom) |
| Rear panel material | GI steel sheets epoxy powder coated |
| Rear panel material thickness | 1.1 mm |
| Vertical construction (for reagent racks | N.A |
| Verticals provided with | N.A |
| Each Verticals with Nylon levellers bolts (for levelling) | N.A |
| All Verticals with top caps in plastic | N.A |
| Reagent shelves bracket made up of | N.A |
| Glass for framed sliding and swinging doors | N.A |
| Glass for reagent shelf’s | N.A |
| Drawers and Doors pulls | Made up of aluminium presser die cast (PDC) handles |
| Minimum length of handle | 320 mm epoxy powder coated |
| Hinges | Made up of SS 304 5 digit knuckle butt hinges (at least 95 degree opening) compliant to SEFA 8M standard |
| Minimum thickness of hinges raw material | 2 mm |
| Number of hinges for shutters / doors under 36 inches in height | N.A |
| Number of hinges for shutters / doors over 36 inches in height | N.A |
| Locks | N.A |
| “O” ring over the lock barrel | N.A |
| Shelf supports | Power coated shelf support clips |
| Drawer slides | N.A |
| Legs made up of | 2.5 mm thick EDD quality GI steel square having 2.5 mm wall thickness |
| Leg size | 50 mm x 50 mm |
| Service pipe supports | L type supports duly perforated |
| Service pipe supports made up of | 32 mm x 2 mm thick GI flats slotted at a particular pitch epoxy coated |
| Work tops | Acid resistant granite 18 mm thick |
| Colour of work top | Jet black |
| Granites edges | N.A |
| Worktop placed on | 4 mm thick neoprene rubber stop back (placed in between table tops and table frames work |
| Electrical points | Provided with one number of 3 Module Plate having 5/15Amps combined switch and 2 sets of sockets |
| Modular type reagent rack | N.A |
| Size of side benches/Island benches (LxWxH) | 900 mm X 1500 mm X 900 mm |
| C Type Fixed Under Bench Cabinet size | 500 mm x 500 mm x 540 mm (having one door, one drawer and one adjustable/removable shelf) |
| C Type Sliding Under Bench Cabinet size | 500 mm x 500 mm x 540 mm (having one door, one drawer and one adjustable/removable shelf) |
| Electrical raceway size | 150 mm(H) x 150 mm(W) x 1550 mm |
| Electrical service panels slideable size | 200 mm (H) x 150 mm(W) x 1550 mm |
| Size of Verticals | N.A |
| Sink made up of | N.A |
| Sink Size | N.A |
| Number of Sink | N.A |
| Water fitting | N.A |
| Splash guard | N.A |
| Peg board | N.A |
| Eye Wash fountain (table mounted) | N.A |
| Storage unit | N.A |
| Exhaust system | N.A |
| Fan made up of | N.A |
| Condensate drain tube | N.A |
| Air suction Capacity | N.A |
| Fan mounted on | N.A |
| Motor | N.A |
| Motor speed | N.A |
| Casing made up of | N.A |
| Impeller (forward curved centrifugal type) made up of | N.A |
| Ducting made up of | N.A |
| Size of ducting | N.A |
| Stool with backrest | No |
| Revolving type stool | No |
| Provision of adjustable height | N.A |
| At bottom of legs of stool | N.A |
| Seat made up of | N.A |
| Backrest made up of | N.A |
| Provision of prongs legs | N.A |
| Colour shade of the table | N.A |
| Furniture finish ( C frame, GI steel sheet and Aluminum alloy structure) except table top | Epoxy powder coated |
| Making and drilling holes in table top for accommodating the electrical gas | Yes |
| Dry Film thickness (test by Elecometer or DFT meter as per ASTM-D 1186-93, IS 13871 : 1993, IS 101) | 35 micron (minimum) |
| Gloss at 600 reflection (test by Gloss meter as per ASTM-D 523-89 RA 1994 ISO 2813, DIN-67530, IS 13871:1993, IS 101) | 70 ± 5 units |
| Scratch hardness [test by Scratch hardness tester as per BS-3900PART E2 1970 , IS 101 (part-5/SEC-2) 1988, IS 13871 : 1993] | 3 Kgs |
| Impact resistance (Test by Impact tester as per ASTM-D2794-93, BS-3900 Part E3 1979, IS 101, JIS K 5400 – 1979, IS 13871 : 1993) | 275 Kg.cm |
| Cross cut adhesion (Test method : DIN 53151 , ISO 2409 , ASTM D 3002 ASTM D 3359 JIS K 5400-1979, IS 13871 : 1993) | 1x1 mm |
| Flexibility (test by Cylinderical mandrel bending tester as per DIN-53152, ISO 1519 ASTM D 522 BS 3900 Part E1, IS 101 Part-5 SEC-2 1988) | 3.25 mm |
| Erichsen Cupping (Test by Erichsen Cupping tester as per JIS K-5400-1990, IS 101 (part5 Sec2) 1988, IS 13871 : 1993 | 8 mm |
| Salt Spray (Test by Salt Spray chamber as per IS 101 (part 6 Sec 1) 1988, ASTM B117-95, IS 13871:1993 | 1000 hours |
| Availability of Test certificate of the furniture system as per SEFA 8M duly certified by SEFA approved laboratory to prove conformity of products to the specification | No |
| Test Report Number - Must declare, if test report available | OLSC-123 |
| Name of the Lab - must declare, if test report available | OLSC |
